| MOQ: | 1 |
| कीमत: | USD2000-USD10000/SET |
| स्टैंडर्ड पैकेजिंग: | नियमित फिल्म और कार्टन के साथ |
| वितरण अवधि: | जमा के 15 दिन बाद |
| भुगतान विधि: | टी/टी, मनीग्राम, वेस्टर्न यूनियन, डी/ए |
| आपूर्ति क्षमता: | 50set/महीना |

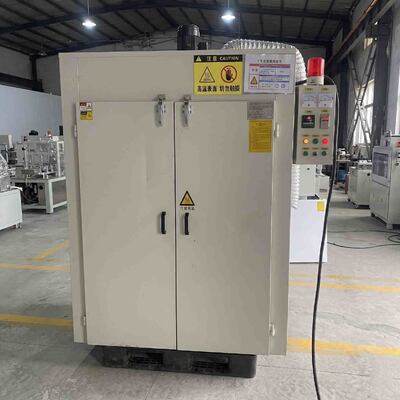

1.Upgrade Your Thermal Processing with Our Latest Industrial Solution
Designed for processes like paint curing, drying, pre-heating, and material testing, this oven is a scalable, powerful asset for any workshop or production line.
2. Key Features and Benefits
DURABLE, DOUBLE-WALL CONSTRUCTION
Feature: Featuring a robust steel exterior and double-walled insulated doors with safety latches.
Benefit: Minimizes heat loss for greater energy efficiency, ensures exterior safety, and is built to withstand rigorous industrial use.
3.ADVANCED CONTROL & MONITORING
Feature: An integrated, high-visibility control cabinet with high-precision digital temperature controllers, analog voltage/current meters, and tactile switches.
Benefit: Gives operators granular control over process parameters for repeatable results. Monitor power consumption and status at a glance.
ENHANCED PROCESS UNIFORMITY
Feature: A powerful, top-mounted motor-driven fan system ensures efficient internal air circulation.
Benefit: Achieves uniform temperature distribution throughout the chamber, reducing process variance and ensuring product quality.
4.INTEGRATED SAFETY SYSTEMS
Feature: Equipped with a prominent red visual warning beacon and clear bilingual (e.g., Chinese/English) hazard labels. Over-temperature protection is standard.
Benefit: Provides instant status feedback and prioritizes operator safety.
MOBILE & VERSATILE DESIGN
Feature: Supported by heavy-duty, industrial-grade casters (four, with optional locks).
Benefit: Easily relocated across your floor for production flexibility. Ideal for dynamic workspaces.
5.Technical Specifications
| Specification | Value |
| Model | Series 2000 Industrial Oven |
| Chamber Dimensions (W x D x H) | Approx. 1200mm x 1000mm x 1500mm |
| Overall Dimensions (W x D x H) | Approx. 1800mm x 1200mm x 2000mm |
| Temperature Range | Ambient to 250°C (higher options available) |
| Temperature Uniformity | ± 3°C |
| Power Supply | 380V, 3-Phase, 50/60Hz (Standard Industrial) |
| Controller Type | Digital PID with Ramp/Soak functions |
| Internal Material | Standard Grade 304 Stainless Steel |
| Mobility | 4 x Heavy-Duty Locking Casters |
| Safety Features | Overtemperature alarm, Visual Beacon, Safety Latches |
